elf.cpp File Reference

#include "mos/tasks/elf.hpp"
#include "mos/filesystem/vfs.hpp"
#include "mos/io/io.hpp"
#include "mos/mm/mm.hpp"
#include "mos/mm/mmap.hpp"
#include "mos/platform/platform.hpp"
#include "mos/syslog/printk.hpp"
#include "mos/tasks/process.hpp"
#include "mos/tasks/schedule.hpp"
#include "mos/tasks/task_types.hpp"
#include "mos/tasks/thread.hpp"
#include <mos/types.hpp>
#include <mos_stdlib.hpp>
#include <mos_string.hpp>

Include dependency graph for elf.cpp:

Go to the source code of this file.

Functions
	MOS_STATIC_ASSERT (sizeof(elf_header_t)==0x40, "elf_header has wrong size")
	MOS_STATIC_ASSERT (sizeof(elf_program_hdr_t)==0x38, "elf_program_header has wrong size")
static void	add_auxv_entry (auxv_vec_t *var, unsigned long type, unsigned long val)
static bool	elf_verify_header (const elf_header_t *header)
static bool	elf_read_file (file_t *file, void *buf, off_t offset, size_t size)
static ptr_t	elf_determine_loadbias (elf_header_t *elf)
static void	elf_setup_main_thread (Thread *thread, elf_startup_info_t *const info, ptr_t *const out_pargv, ptr_t *const out_penvp)
static void	elf_map_segment (const elf_program_hdr_t *const ph, ptr_t map_bias, MMContext *mm, file_t *file)
static ptr_t	elf_map_interpreter (const char *path, MMContext *mm)
__nodiscard bool	elf_do_fill_process (Process *proc, file_t *file, elf_header_t elf, elf_startup_info_t *info)
bool	elf_read_and_verify_executable (file_t *file, elf_header_t *header)
bool	elf_fill_process (Process *proc, file_t *file, const char *path, const char *const argv[], const char *const envp[])
Process *	elf_create_process (const char *path, Process *parent, const char *const argv[], const char *const envp[], const stdio_t *ios)

Function Documentation

MOS_STATIC_ASSERT() [1/2]

MOS_STATIC_ASSERT	(	sizeof(elf_header_t)	= =0x40,
		"elf_header has wrong size"	)

MOS_STATIC_ASSERT() [2/2]

MOS_STATIC_ASSERT	(	sizeof(elf_program_hdr_t)	= =0x38,
		"elf_program_header has wrong size"	)

add_auxv_entry()

static void add_auxv_entry ( auxv_vec_t * var, unsigned long type, unsigned long val )

static

Definition at line 23 of file elf.cpp.

Referenced by elf_do_fill_process(), and elf_setup_main_thread().

elf_verify_header()

static bool elf_verify_header ( const elf_header_t * header )

static

Definition at line 32 of file elf.cpp.

Referenced by elf_read_and_verify_executable().

Here is the call graph for this function:

elf_read_file()

static bool elf_read_file ( file_t * file, void * buf, off_t offset, size_t size )

staticnodiscard

Definition at line 58 of file elf.cpp.

Referenced by elf_do_fill_process(), elf_map_interpreter(), and elf_read_and_verify_executable().

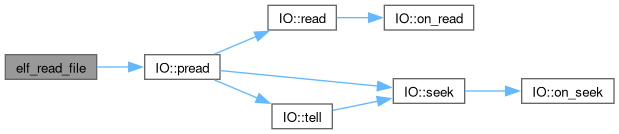

Here is the call graph for this function:

elf_determine_loadbias()

static ptr_t elf_determine_loadbias ( elf_header_t * elf )

static

Definition at line 64 of file elf.cpp.

Referenced by elf_do_fill_process().

elf_setup_main_thread()

static void elf_setup_main_thread ( Thread * thread, elf_startup_info_t *const info, ptr_t *const out_pargv, ptr_t *const out_penvp )

static

Typical Stack Layout:

 (low address)
 |-> u32 argc
 |-> ptr_t argv[]
 |   |-> NULL
 |-> ptr_t envp[]
 |   |-> NULL
 |-> AuxV
 |   |-> AT_...
 |   |-> AT_NULL
 |-> argv strings, NULL-terminated
 |-> environment strings, NULL-terminated
 |-> u32 zero
 (high address, end of stack)

Definition at line 88 of file elf.cpp.

Referenced by elf_do_fill_process().

Here is the call graph for this function:

elf_map_segment()

static void elf_map_segment ( const elf_program_hdr_t *const ph, ptr_t map_bias, MMContext * mm, file_t * file )

static

Definition at line 158 of file elf.cpp.

Referenced by elf_do_fill_process(), and elf_map_interpreter().

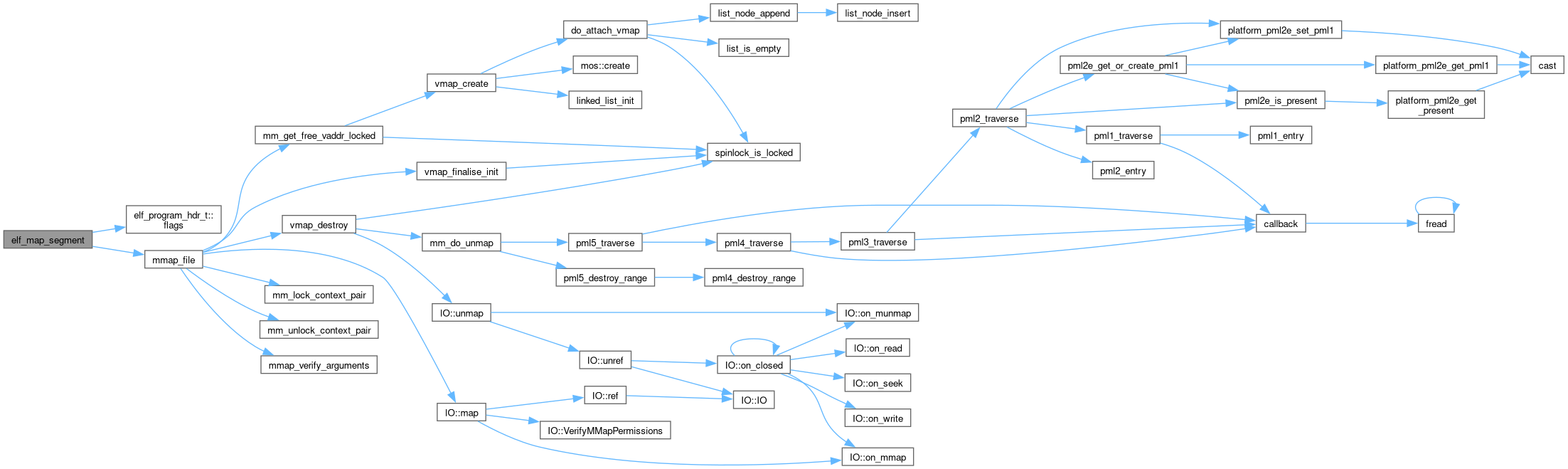

Here is the call graph for this function:

elf_map_interpreter()

static ptr_t elf_map_interpreter ( const char * path, MMContext * mm )

static

Definition at line 203 of file elf.cpp.

Referenced by elf_do_fill_process().

Here is the call graph for this function:

elf_do_fill_process()

__nodiscard bool elf_do_fill_process	(	Process *	proc,
		file_t *	file,
		elf_header_t	elf,
		elf_startup_info_t *	info )

Definition at line 243 of file elf.cpp.

Referenced by elf_fill_process(), and process_do_execveat().

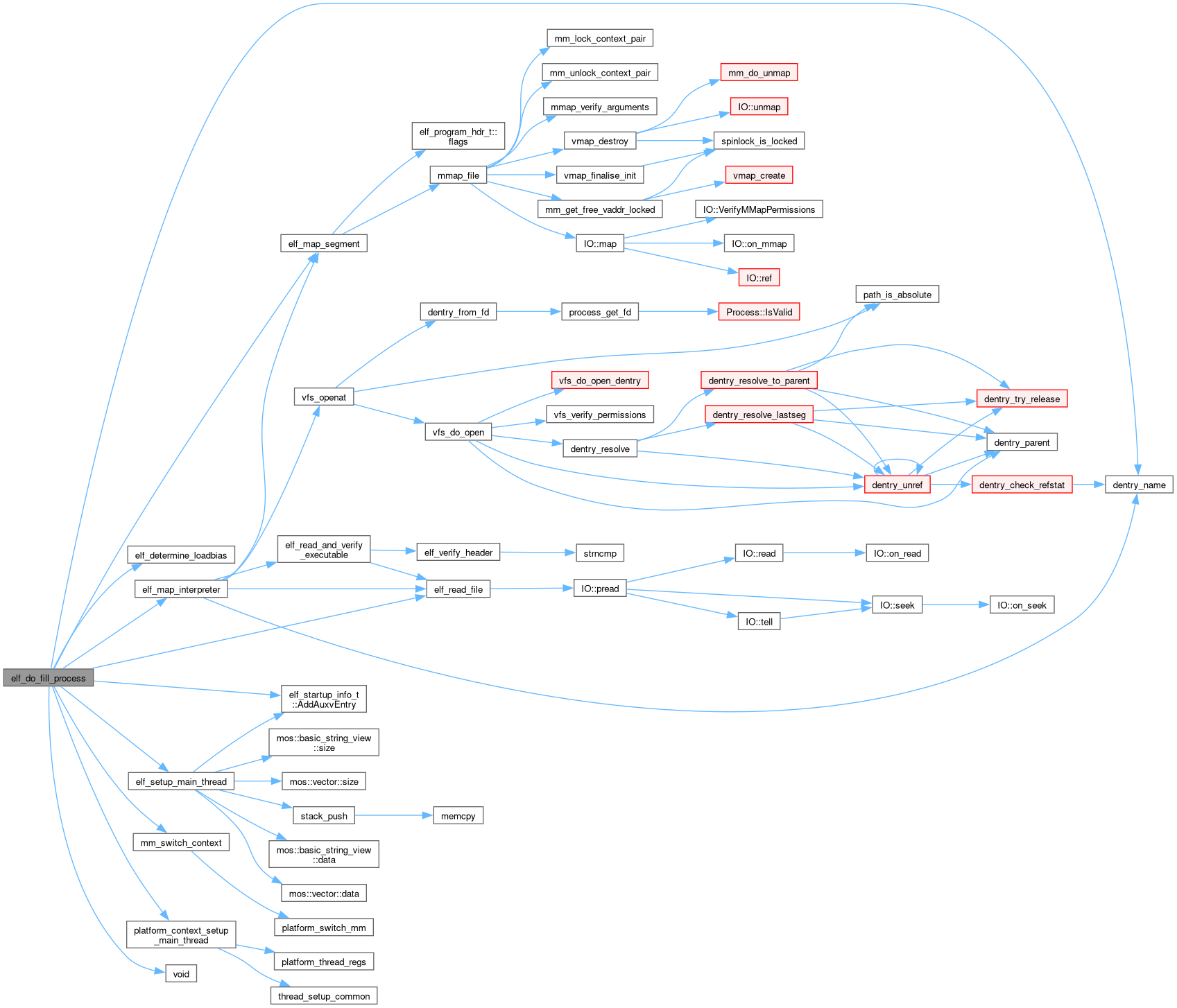

Here is the call graph for this function:

elf_read_and_verify_executable()

bool elf_read_and_verify_executable	(	file_t *	file,
		elf_header_t *	header )

Definition at line 351 of file elf.cpp.

Referenced by elf_fill_process(), elf_map_interpreter(), and process_do_execveat().

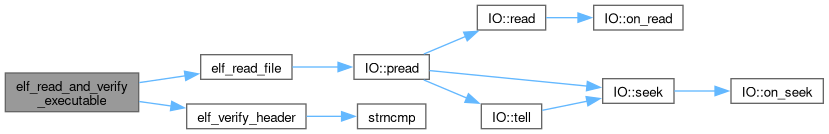

Here is the call graph for this function:

elf_fill_process()

bool elf_fill_process	(	Process *	proc,
		file_t *	file,
		const char *	path,
		const char *const	argv[],
		const char *const	envp[] )

Definition at line 366 of file elf.cpp.

Referenced by elf_create_process().

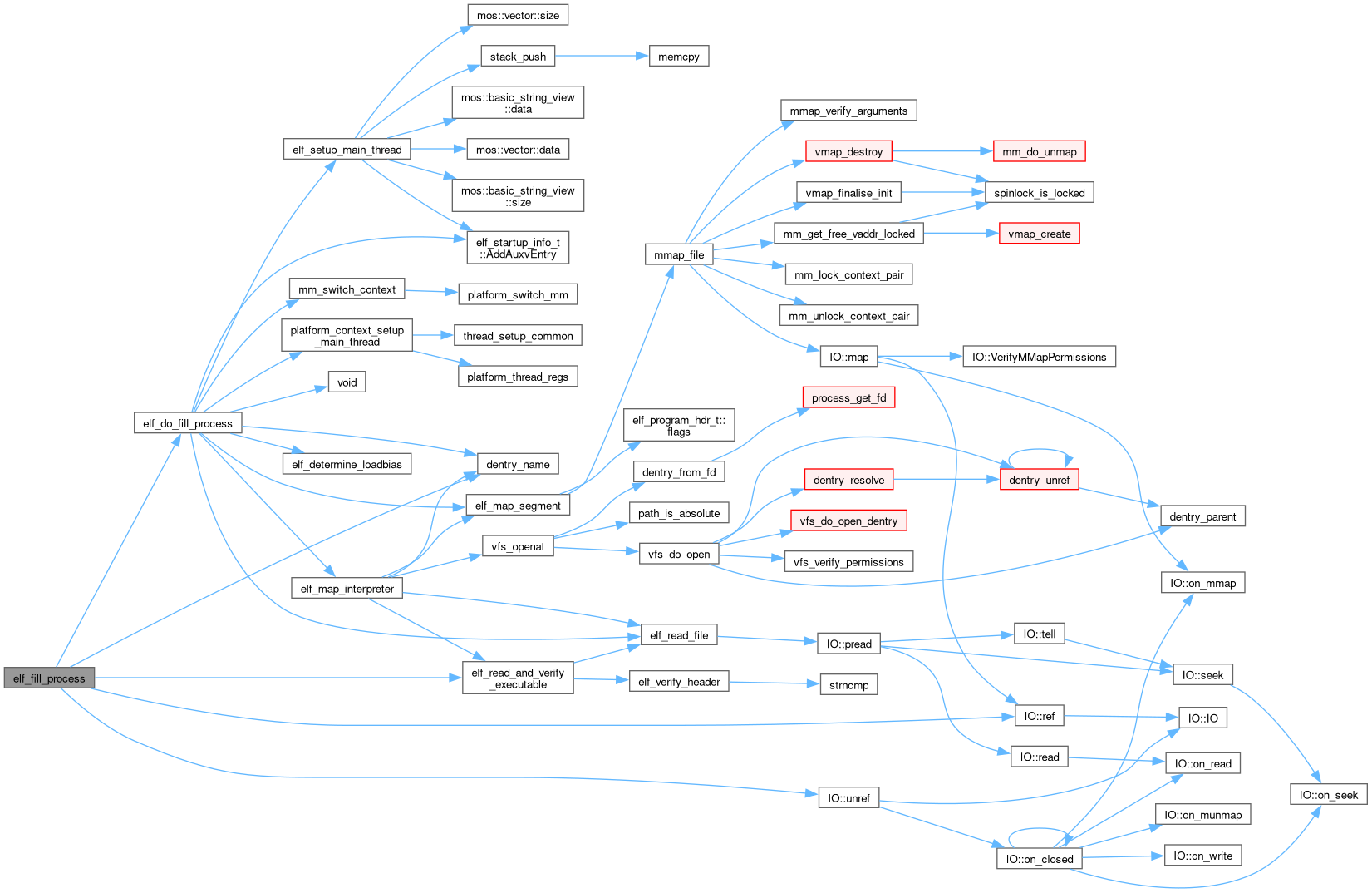

Here is the call graph for this function:

elf_create_process()

Process * elf_create_process	(	const char *	path,
		Process *	parent,
		const char *const	argv[],
		const char *const	envp[],
		const stdio_t *	ios )

Definition at line 420 of file elf.cpp.

Referenced by mos_start_kernel(), and MOS_STATIC_ASSERT().

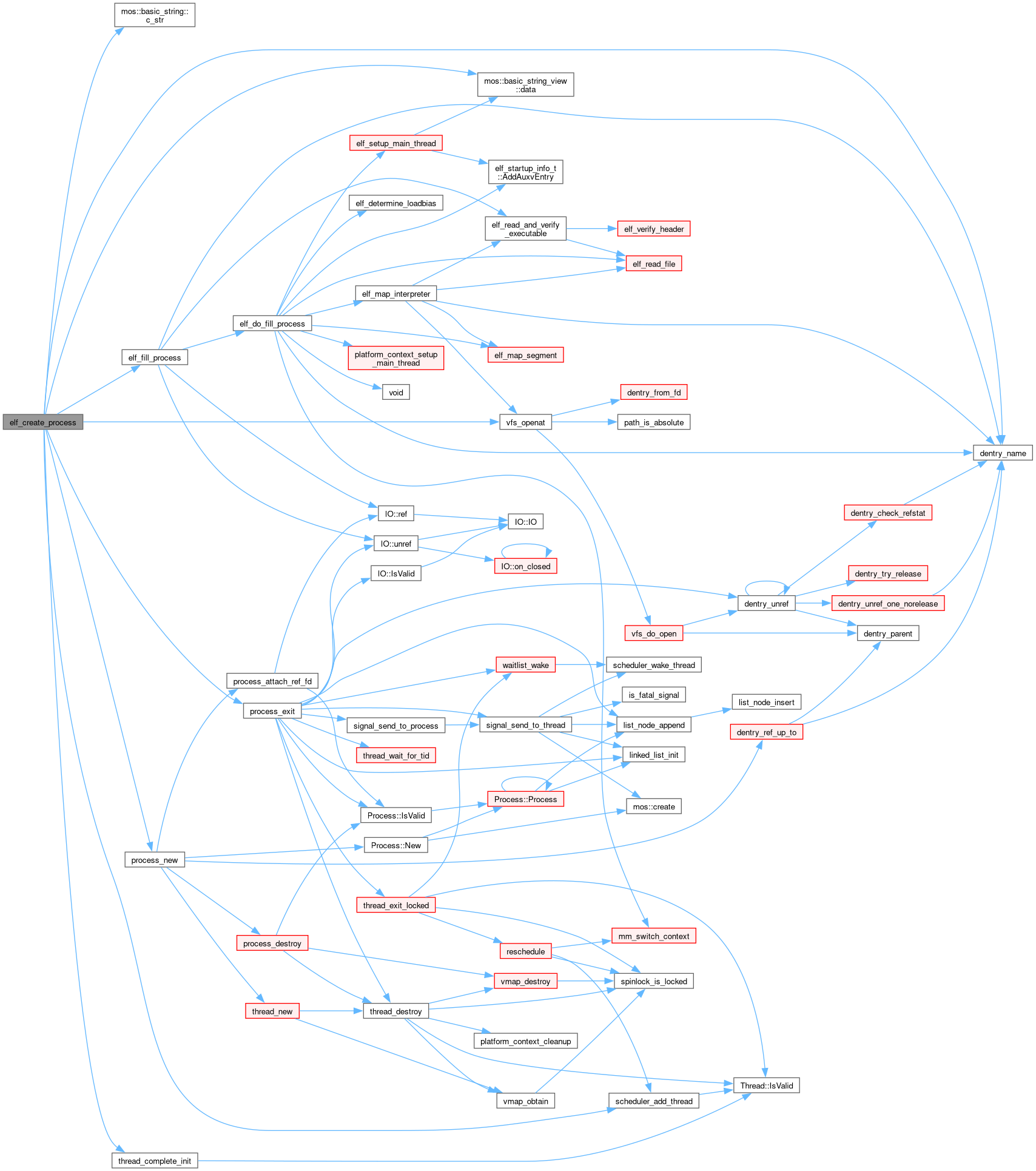

Here is the call graph for this function:
